AnoScout
Visual Exploration of Anomalies and Anomaly Detection Algorithm Ensembles in Time Series Data
Julian Rakuschek, Michael Leitner, Jürgen Bernard, Selina C. Wriessnegger, Tobias Schreck
VINCI 2025 - 01.12.2025

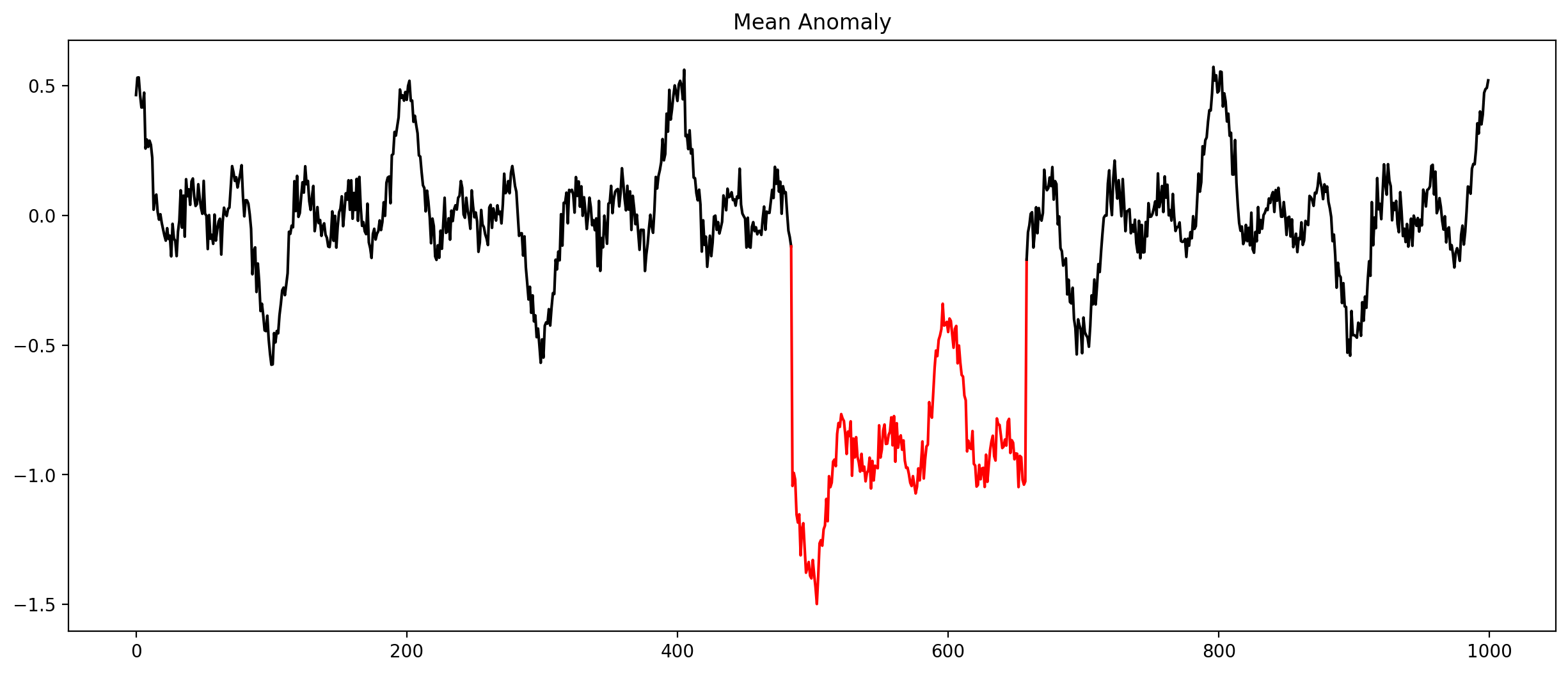

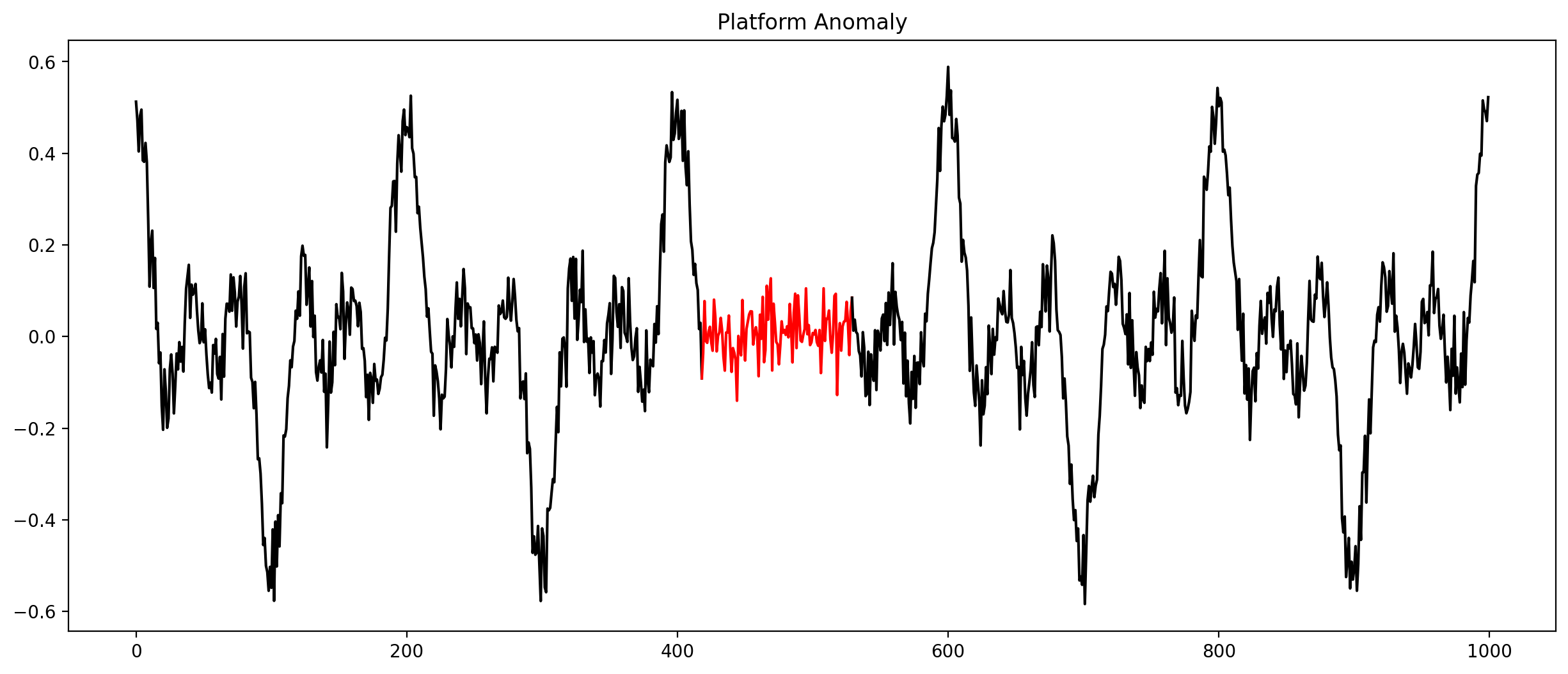

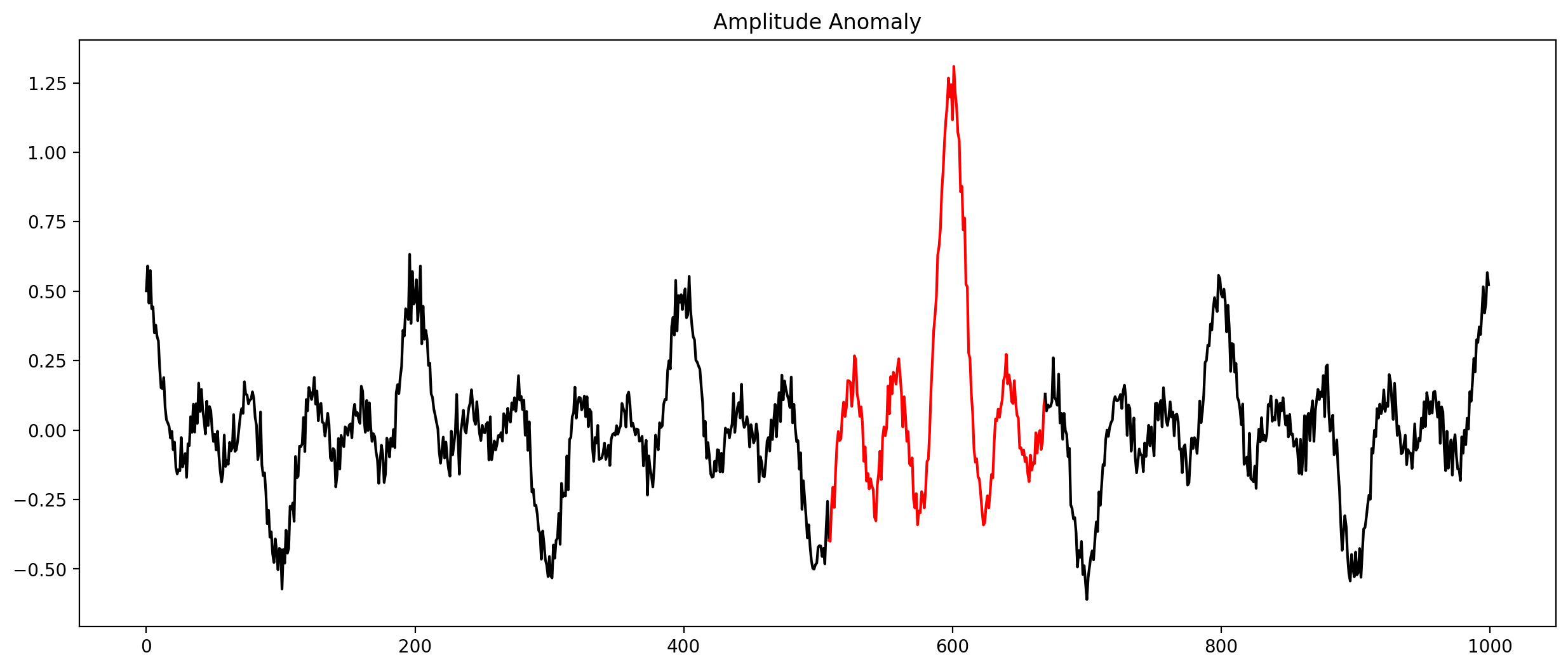

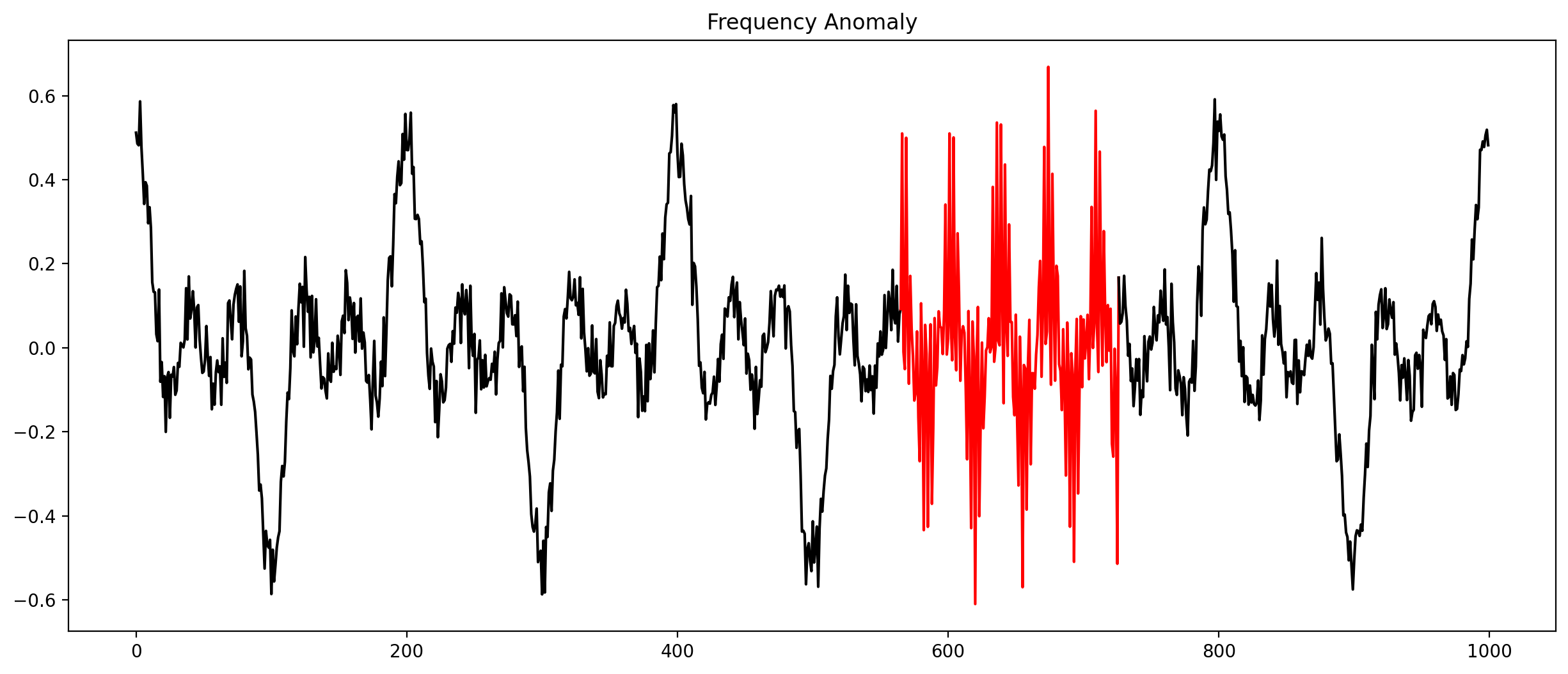

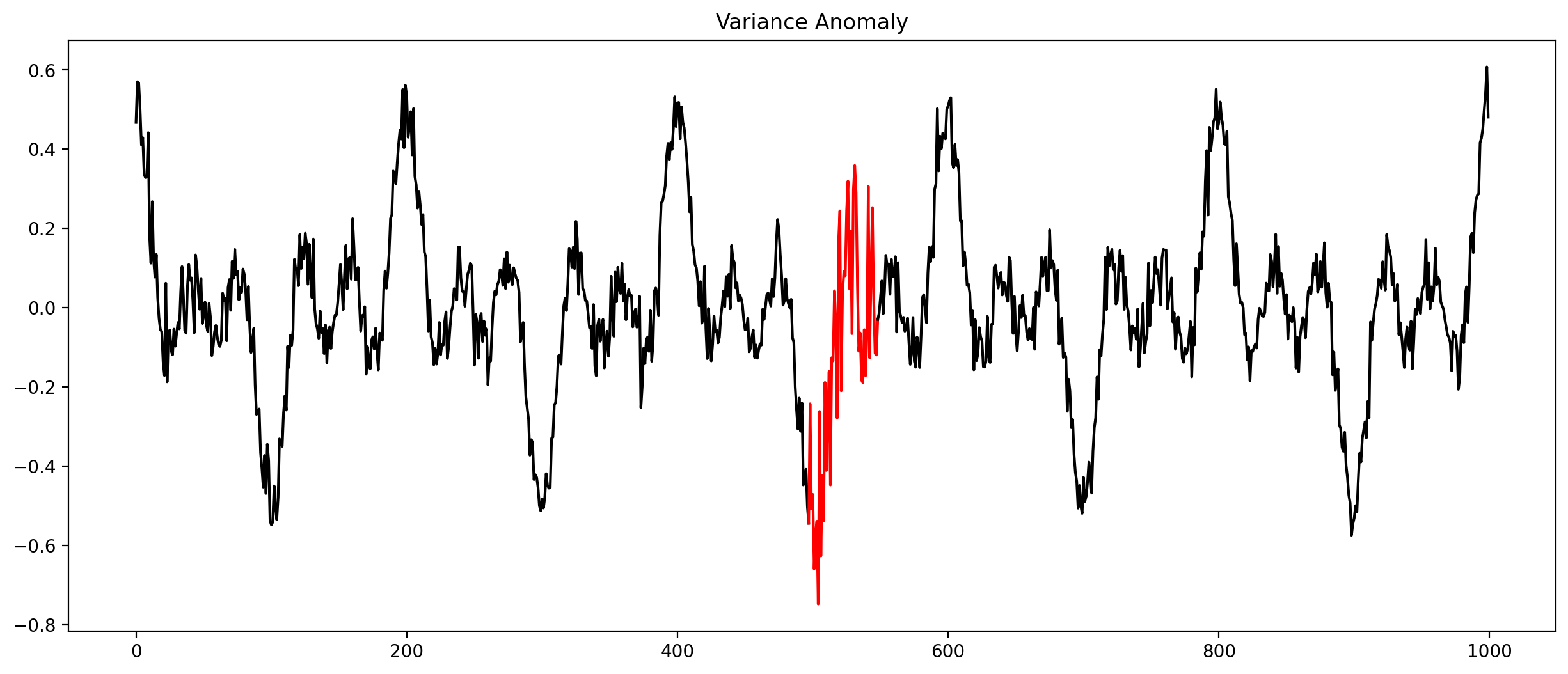

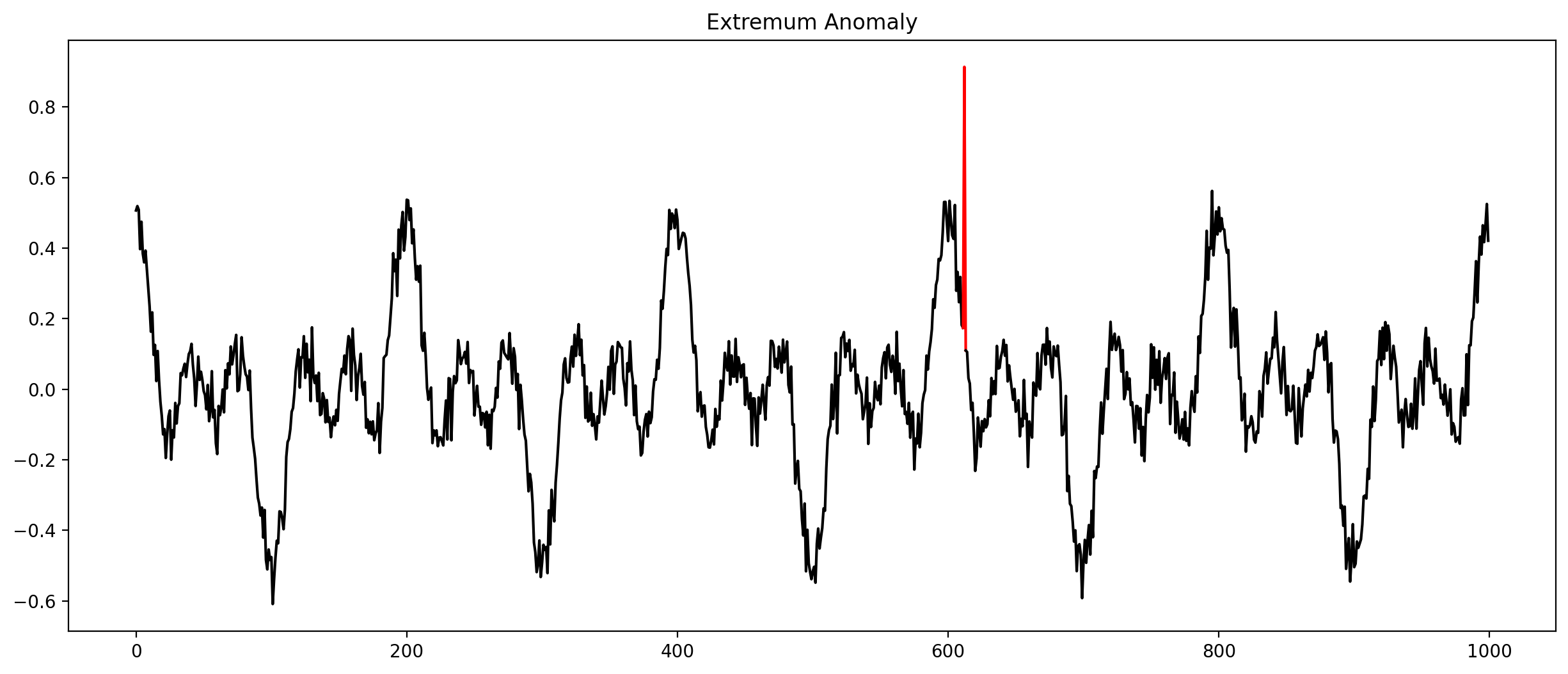

Anomalies in time series (Selection)
Anomaly = Unexpected Pattern
Easy to see for a human!

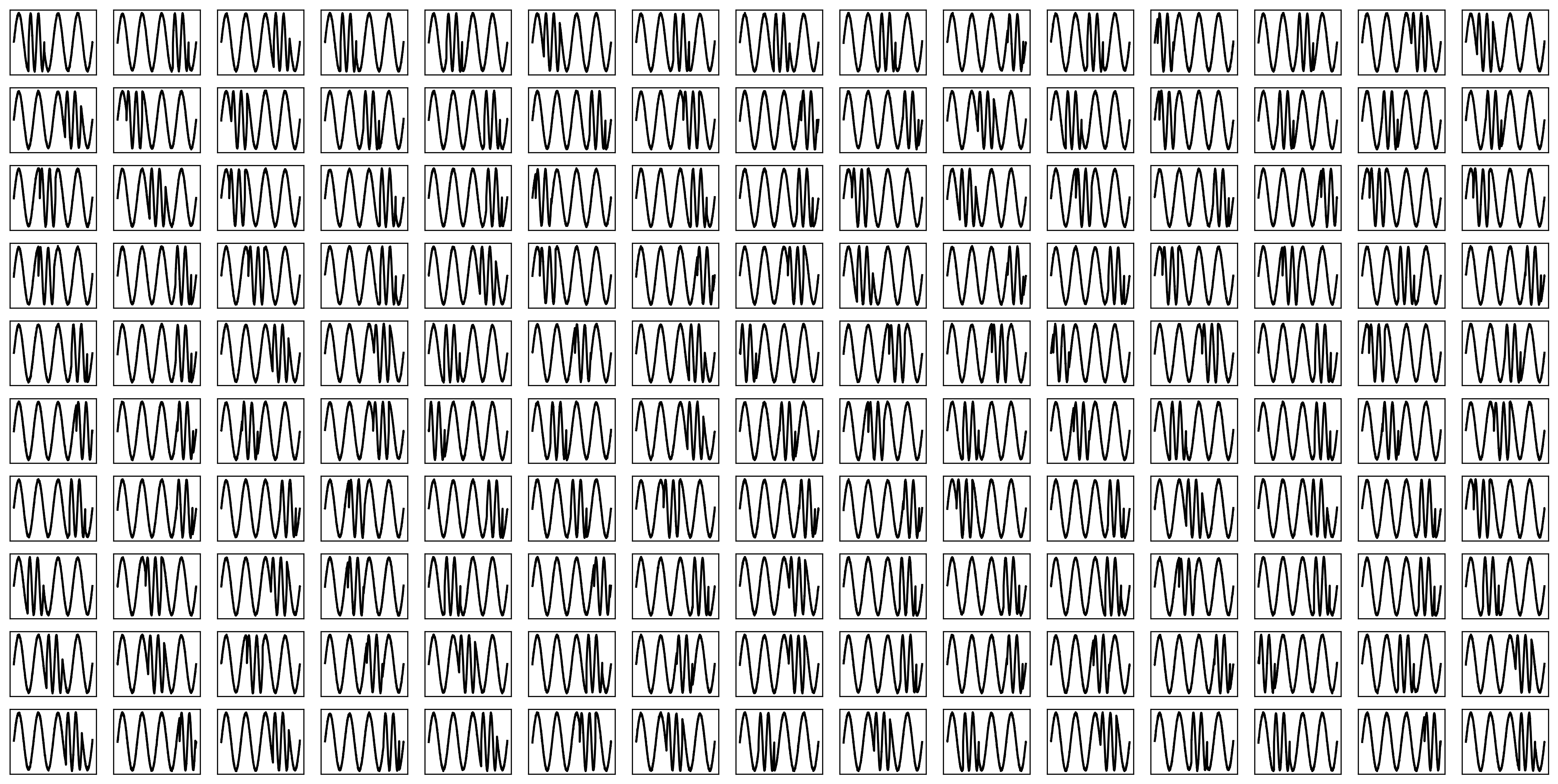

Check every time series by hand?
Let algorithms do the work!
We would like to find these anomalies:
Apply unsupervised algorithms = no training required
Unsupervised algorithms produce a scoring
Input Time Series

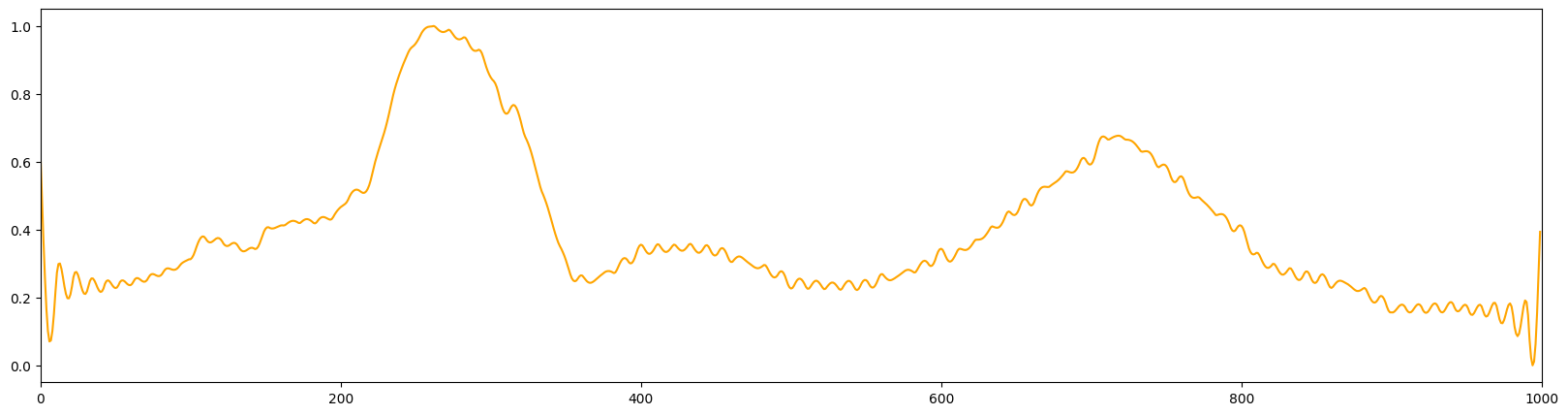

K-Means
Better for first anomaly

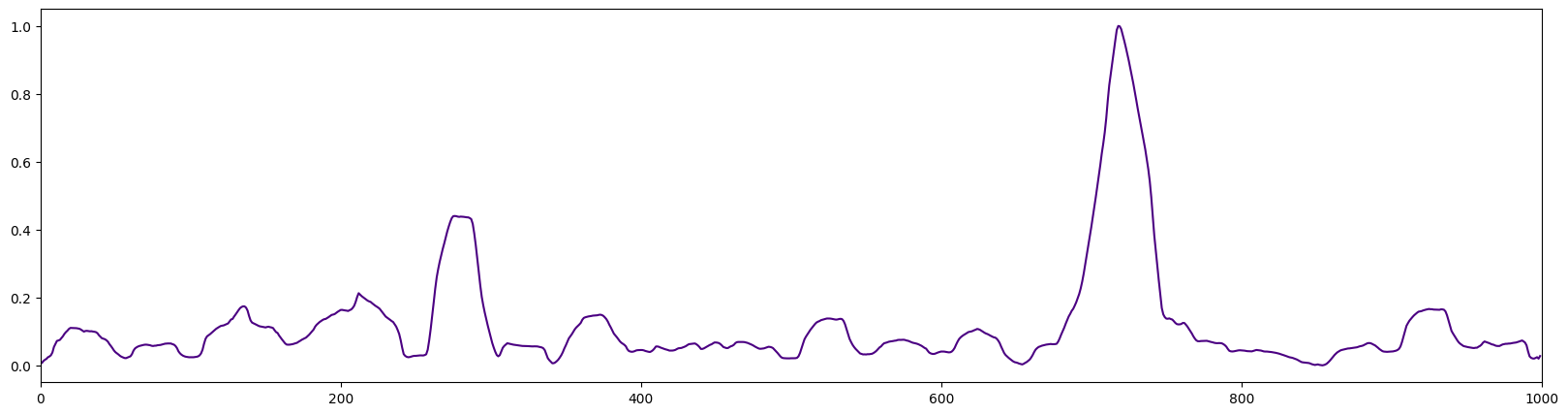

Local Outlier Factor
Better for second anomaly
Ensemble to combine strengths
Input Time Series

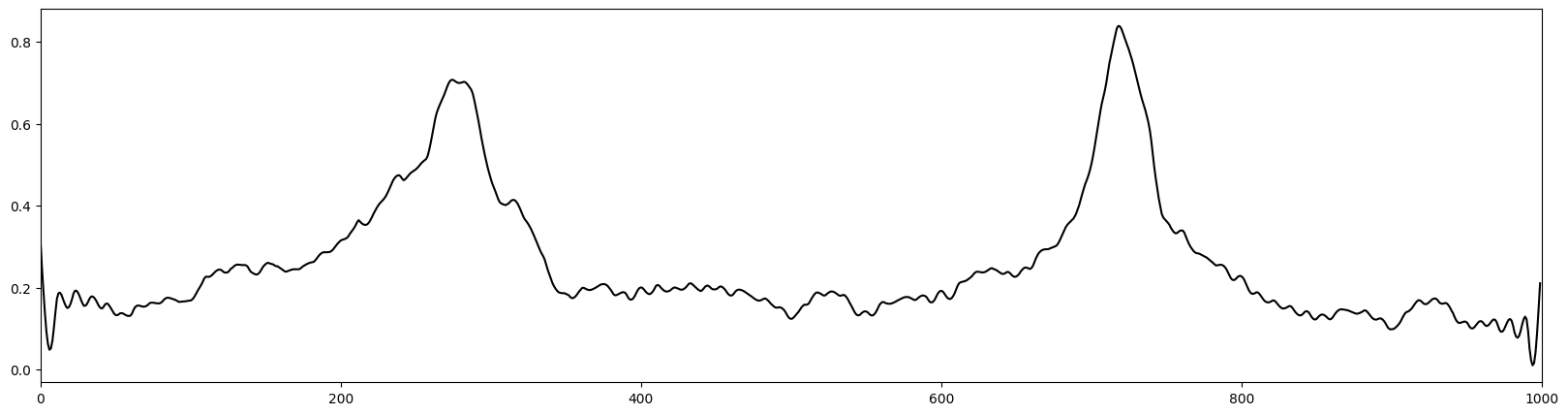

Ensemble
Average of LOF and K-Means

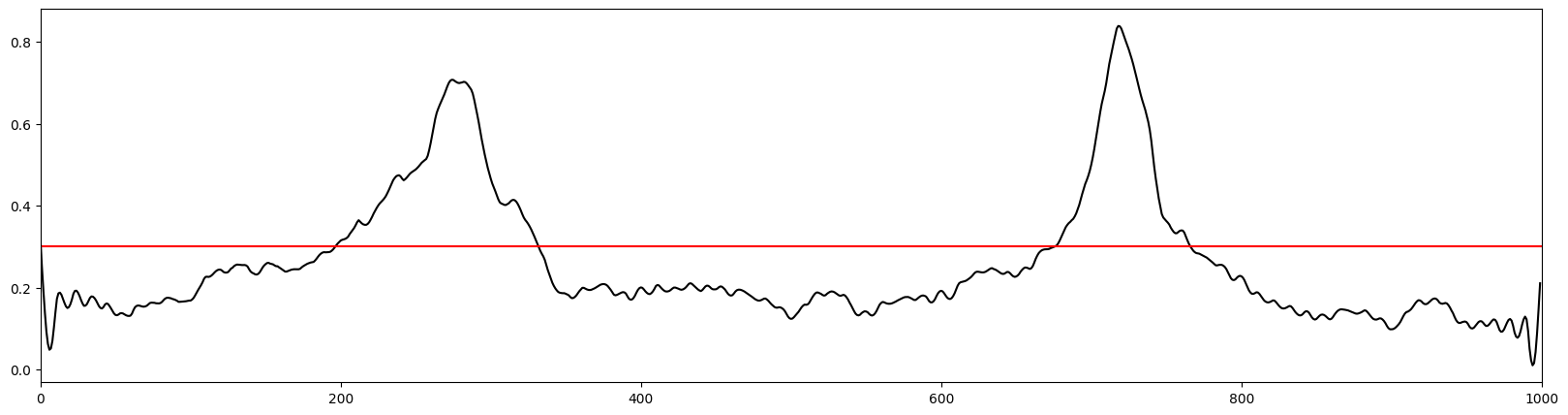

Threshold
Everything above threshold = anomaly

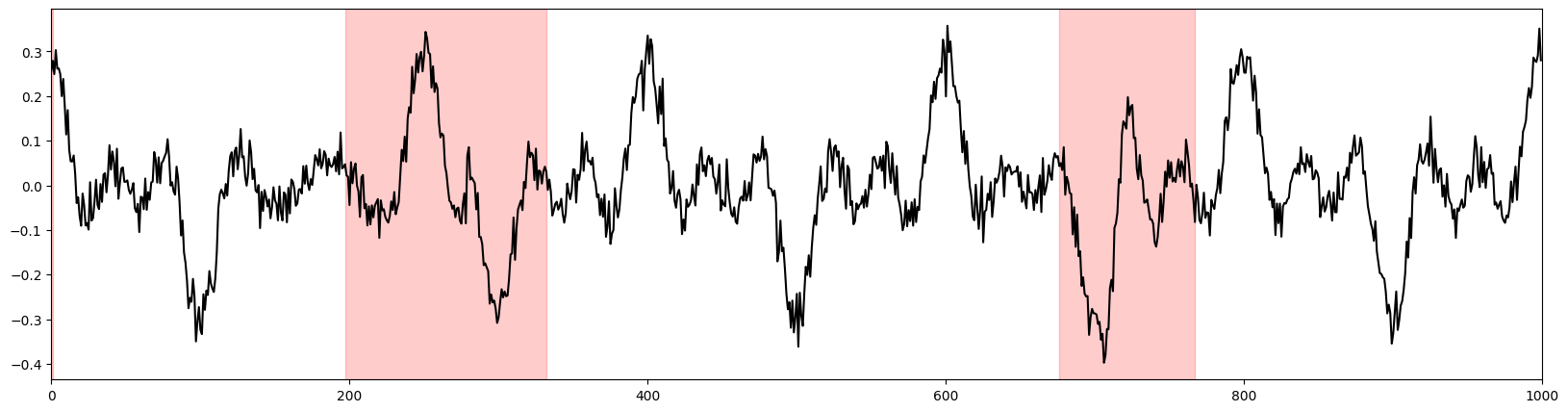

The Result are Interval Annotations for Anomalies
Not perfect, but close enough
Coming back to this:
We now ask:
- Which anomalies arise?
- Anomaly categorization?
- Strengths and weaknesses of algorithms?
Introducing AnoScout
AnoScout = Playground for anomaly detection algorithms

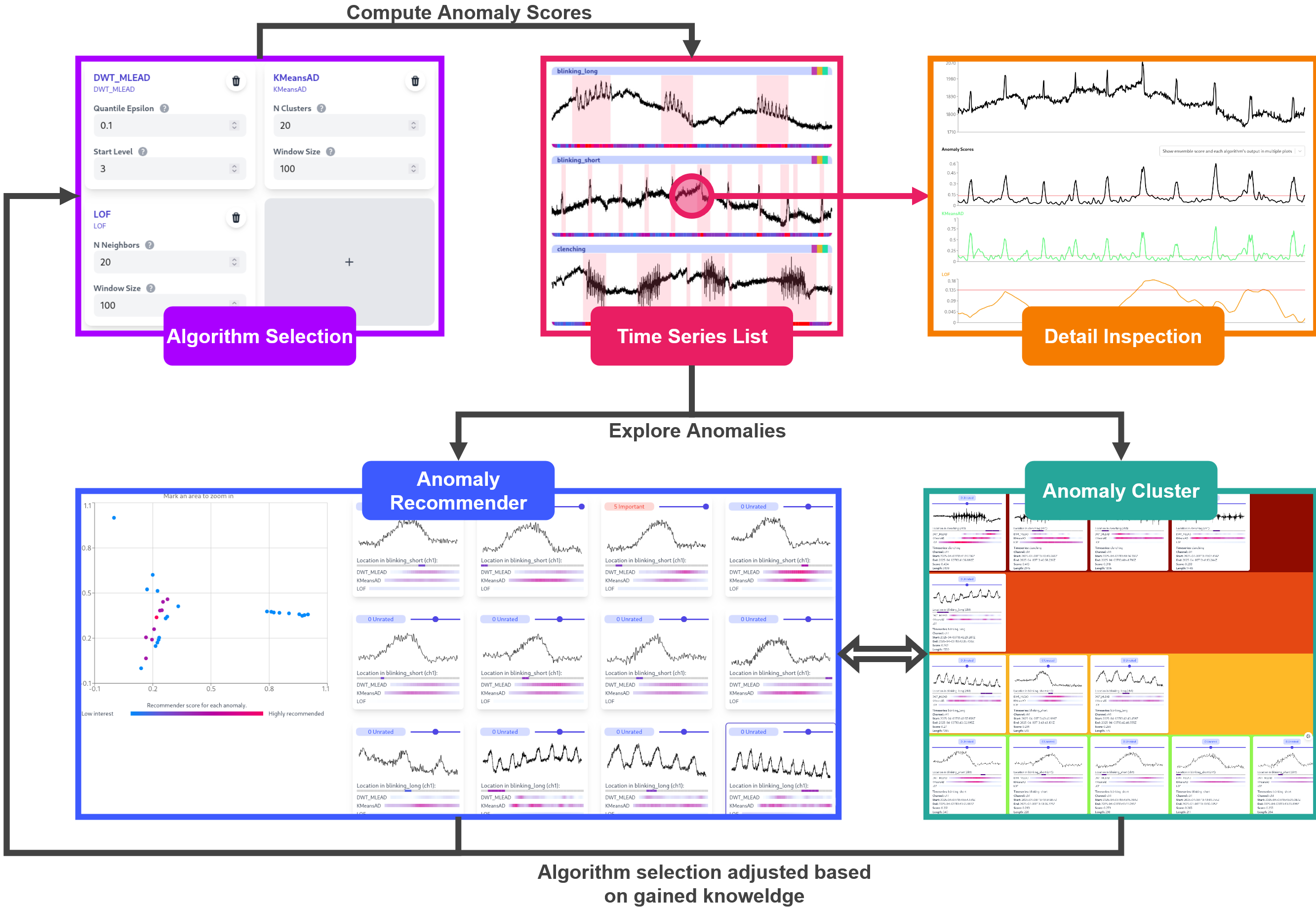

Our contribution: A workflow to explore anomalies
Scenario: EEG Artifact Detection

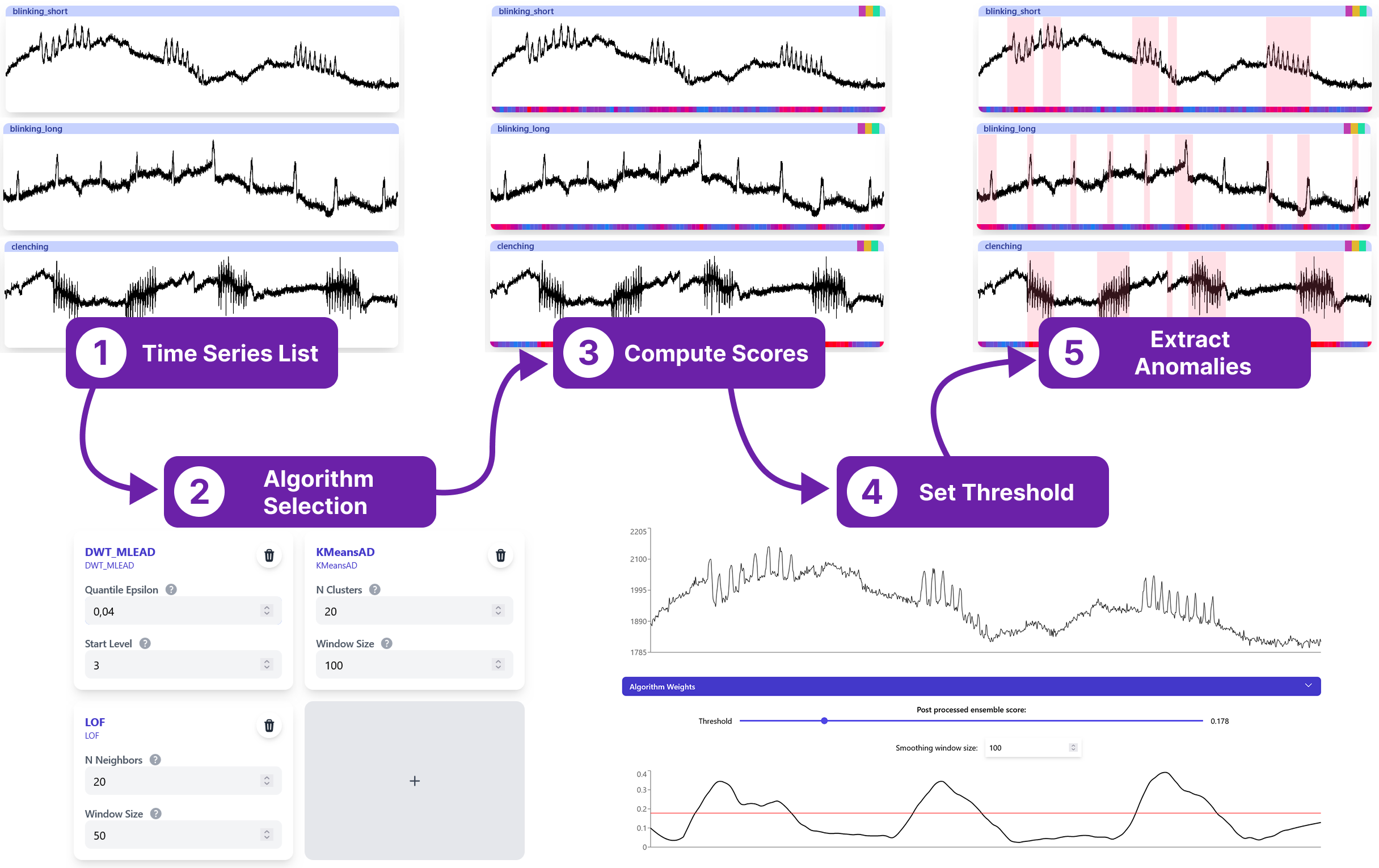

Extract Anomalies

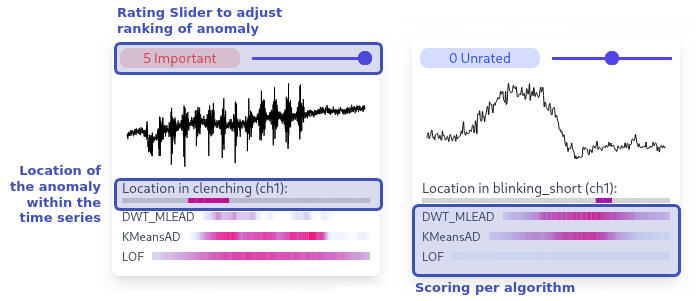

Each anomaly is represented through a card
Explore Anomalies
Projection Based
Step 3: Rank Anomalies
This was all unsupervised.
What if I already know the expected behavior?

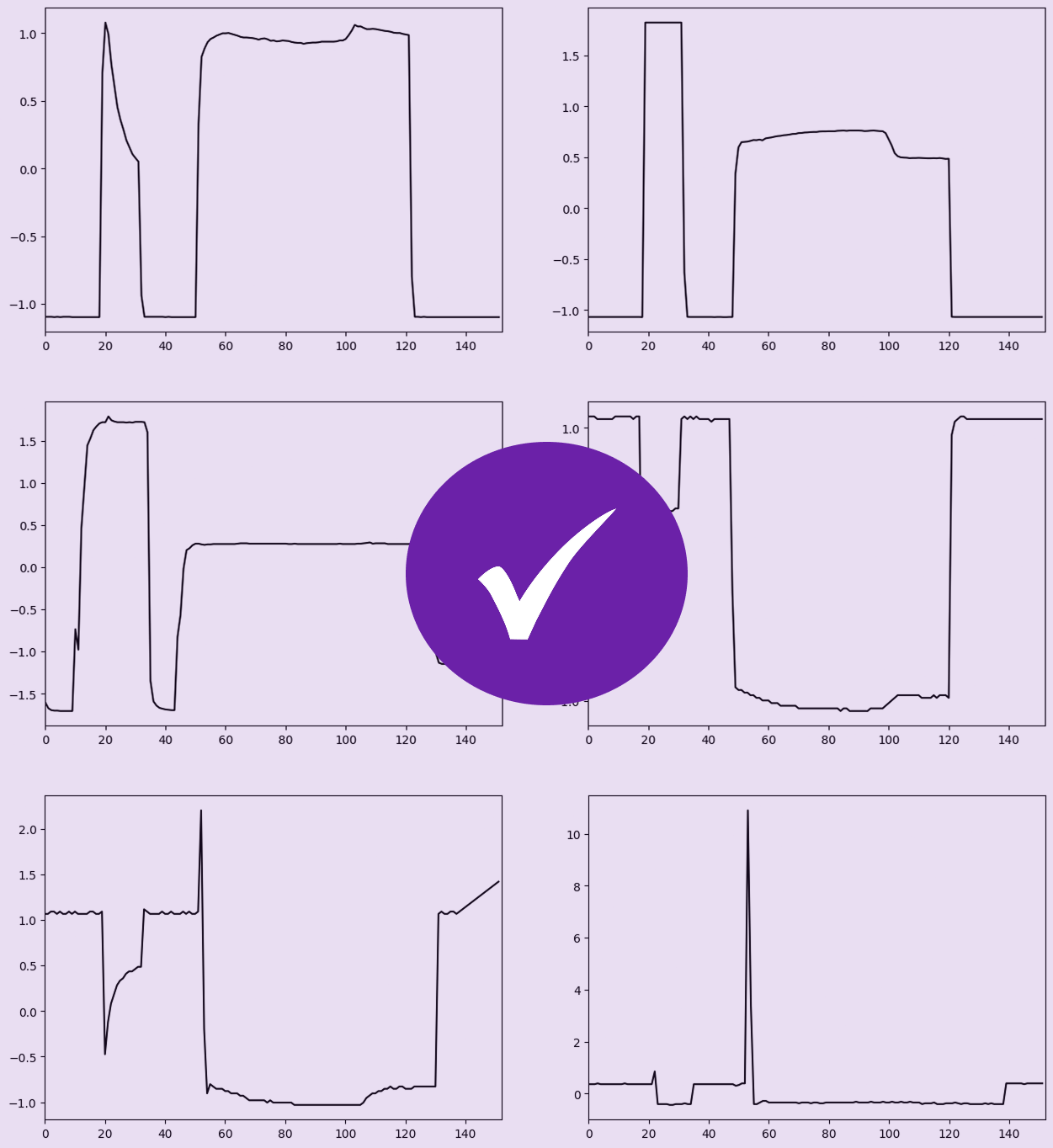

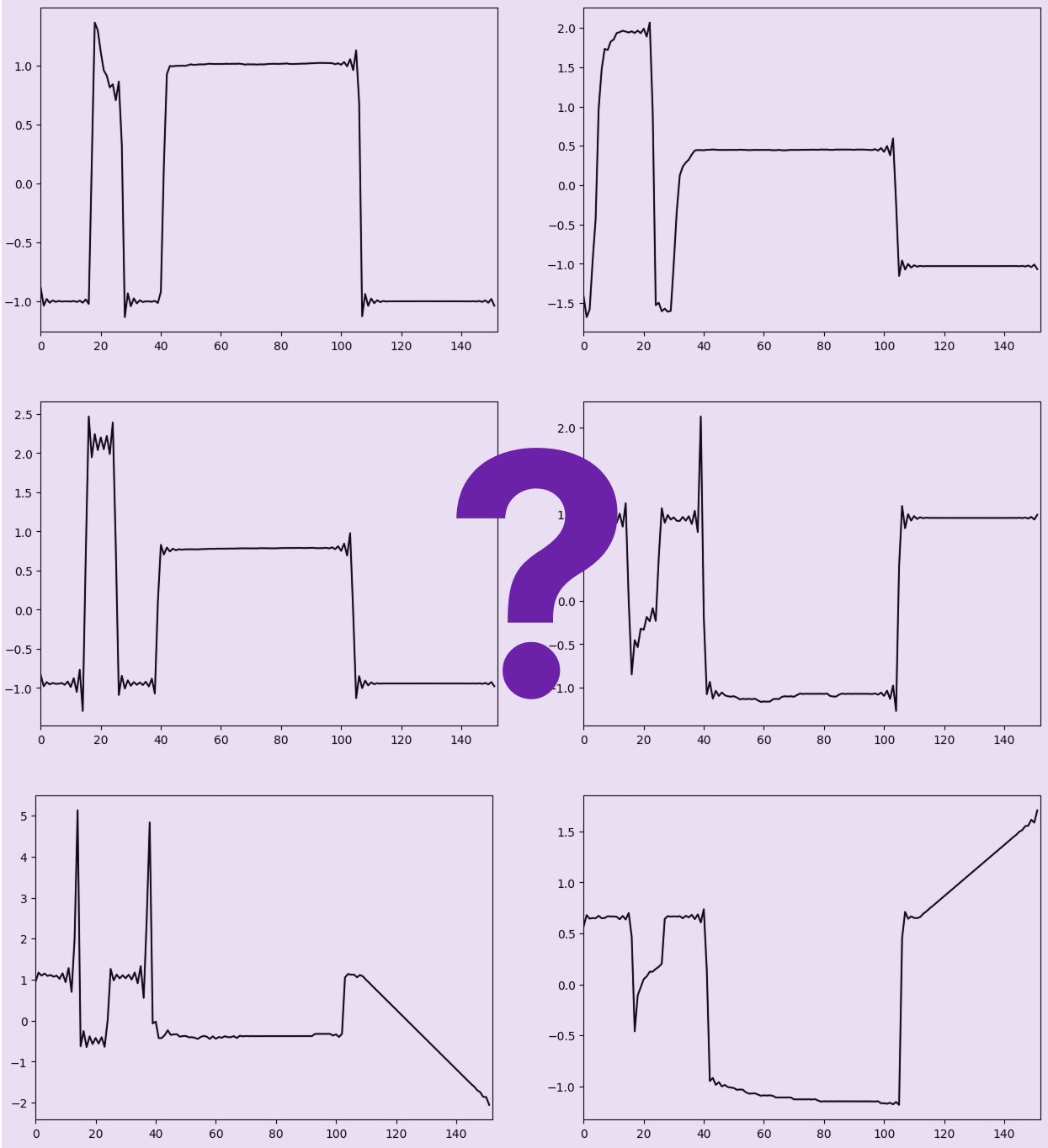

Scenario: Manufacturing
How can we configure a classifier for that?
AnoScout supports configuring a classifier
Explore Anomalies
Cluster Based
Summary
Future Work
- Algorithm Parameter Guidance
- Multivariate Time Series
- Progressive Exploring for Large Datasets
Thank you!
Julian Rakuschek
Michael Leitner
Jürgen Bernard
Selina Wriessnegger
Tobias Schreck
Open Source
